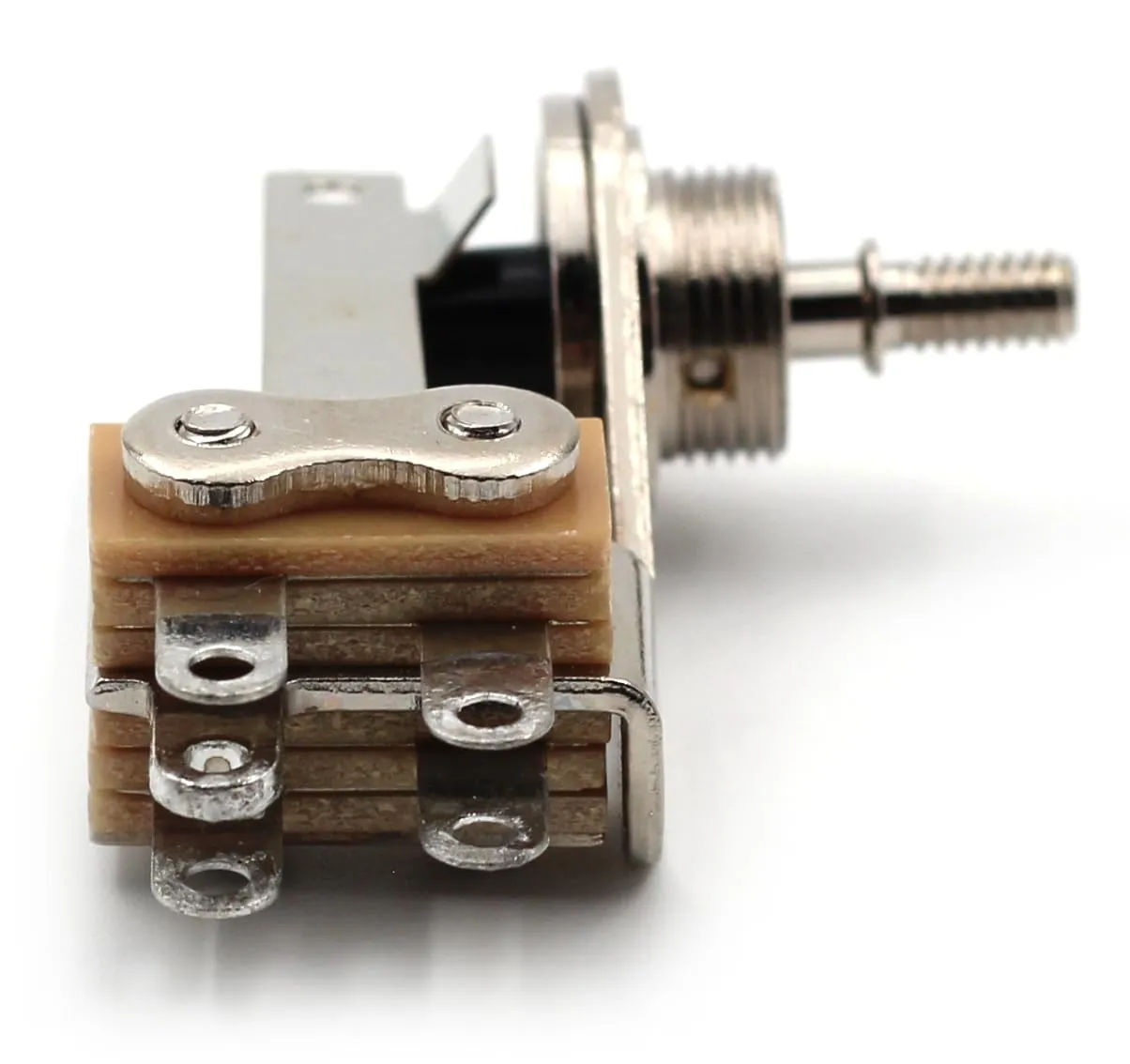

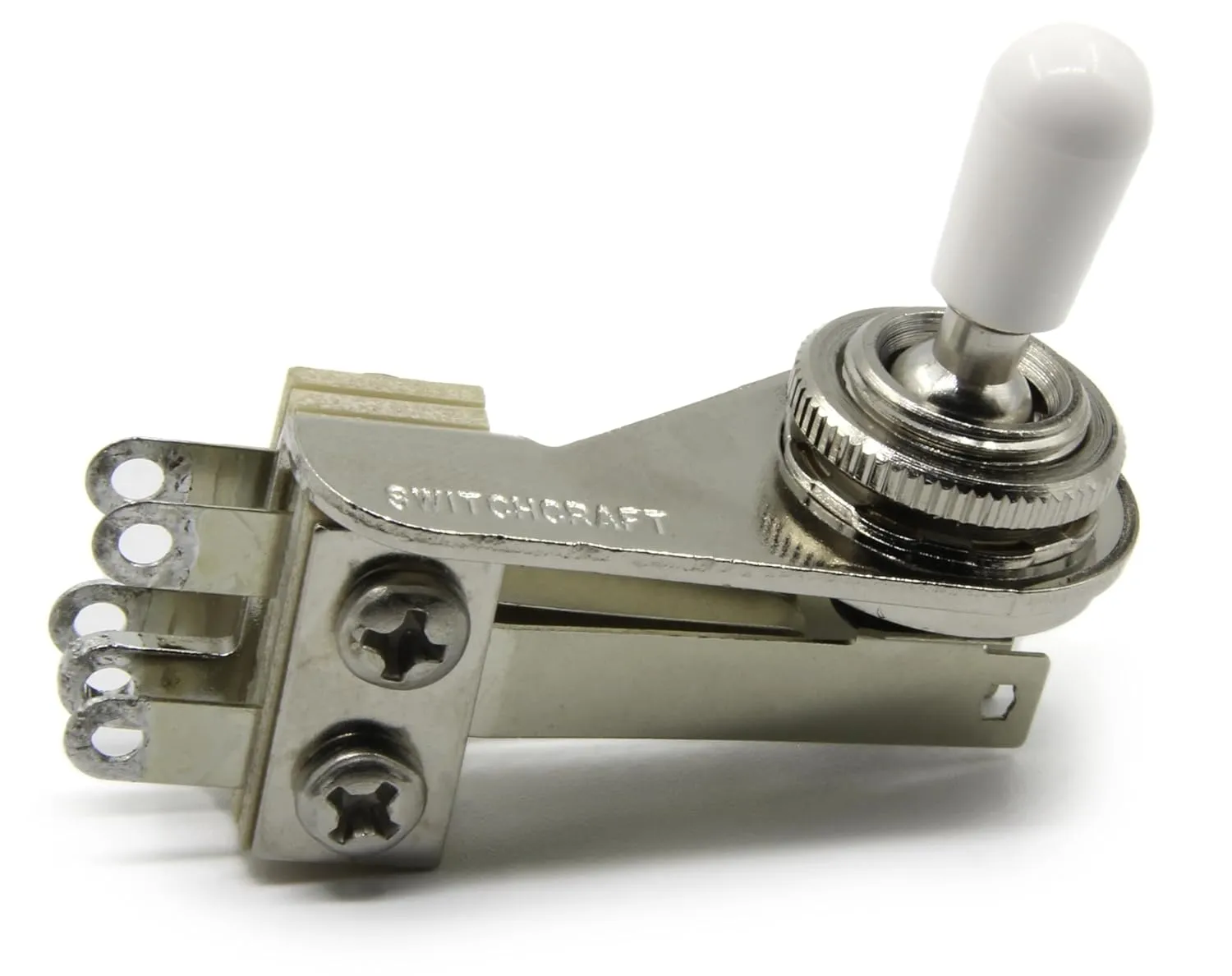

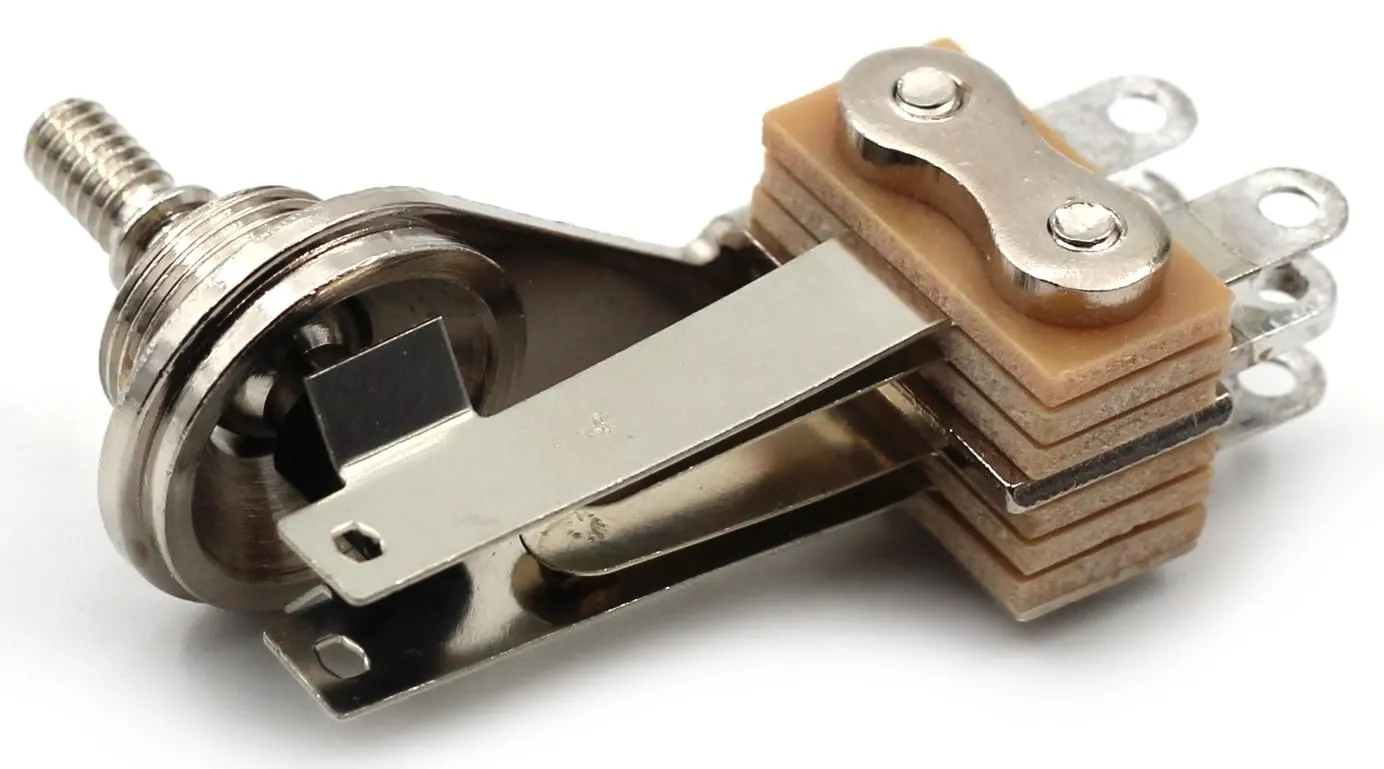

- Right-angle toggle switch for SG and thin 2-pickup guitars
- Made by Switchcraft in USA
- Pre-tinned lugs for easy soldering
- Genuine Switchcraft colored switch tip included
- PLEASE NOTE! When using with a thick body or carved top you MAY need a deep nut to to thread the toggle through the body.. A deep nut needs to be purchased separately

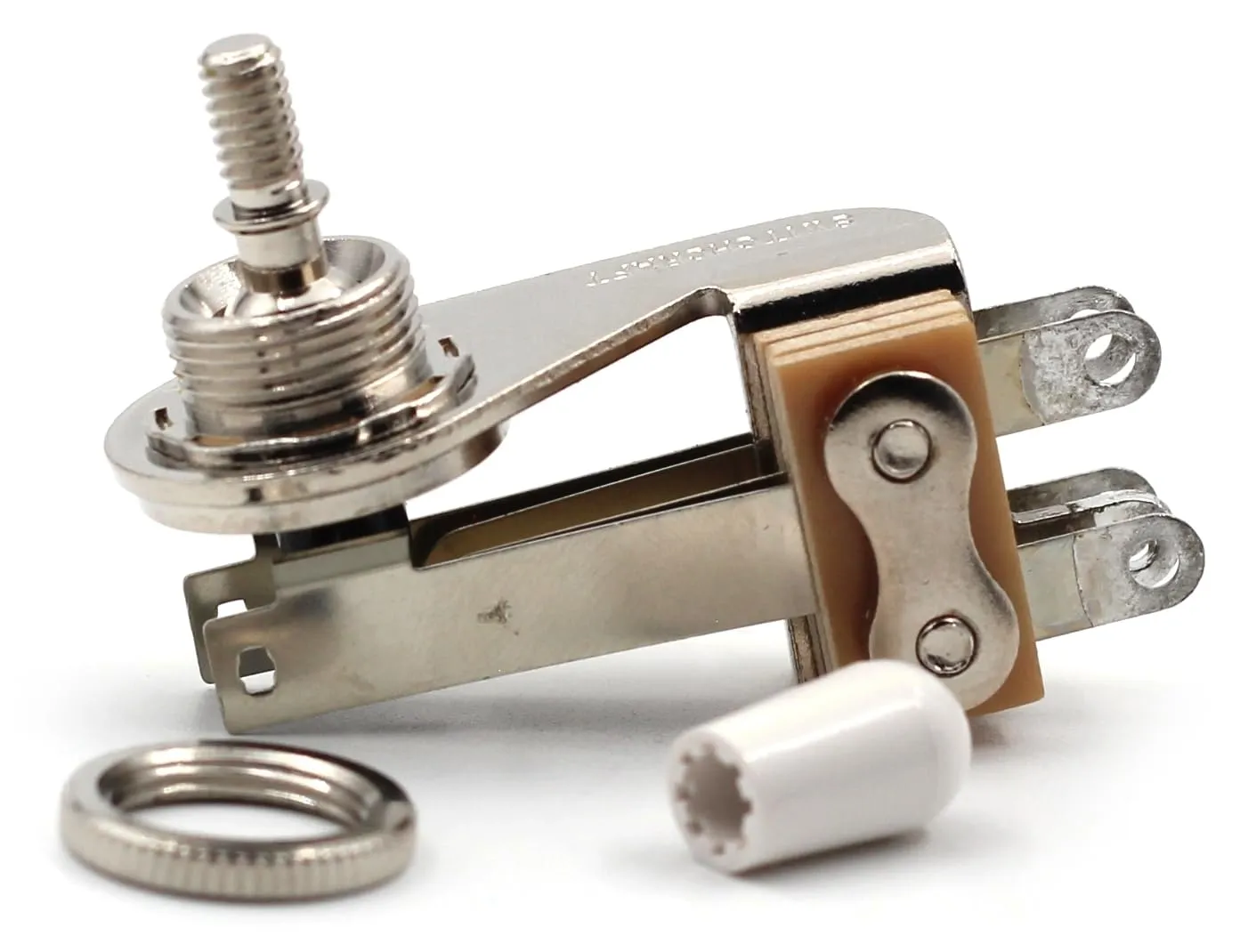

Reliable and heavy-duty for SG and thin 2-pickup guitars. Switchcraft has been the standard in Gibsons and other great American guitars for decades. Genuine Switchcraft tip in desired color is included. Pre-tinned lugs for easy soldering. Comes with one flat knurled nut.
Switch length: 2"(50.80mm)
Thread height: 3/16"(4.76mm)
Requires 1/2"(12.70mm) mounting hole diameter
Required body cavity depth 1-1/2"(38.10mm) and 13/16"(20.64mm) body cavity depth
Note: Due to the thickness of carved top guitars, a deep nut may be required to thread the switch through the body of the guitar. The deep nut is NOT included with this switch but may be purchased separately.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 2 x 2.4 x 0.7 inches; 0.63 ounces
- Date First Available : March 8, 2022
- Manufacturer : Switchcraft
- Country of Origin : USA
